JS1500 Concrete Mixer

Introduce

JS1500 Twin-shaft concrete mixers allow achieving a high homogeneity of the mixture (up to 95%) for a period of 60 seconds, and they are also designed to work with aggregate sizes up to 180mm. The mixing intensity is achieved due to the design that moves the mixture simultaneously in three directions. Parts of twin-shaft concrete mixers are subject to less wear because the main mixing takes place in the center of the Twin-shaft concrete mixer. As a result of which friction against the side armor is reduced. Because of this design, it is possible to work with a partial load or restart in a full state.

JS1500 Twin-shaft concrete mixers Advantage

• JS1500 concrete mixer includes Twin-motors and Reducers, which choose in China famous brand
• Twin Reducer option: Cycloidal reducer/Planetary reducer
• Twin horizontal shaft compulsory mixer with a high capacity but less time
• Multi-sealing structure on the shaft end sealing effectively prevents leakage
• Automatically lubricating oil pump

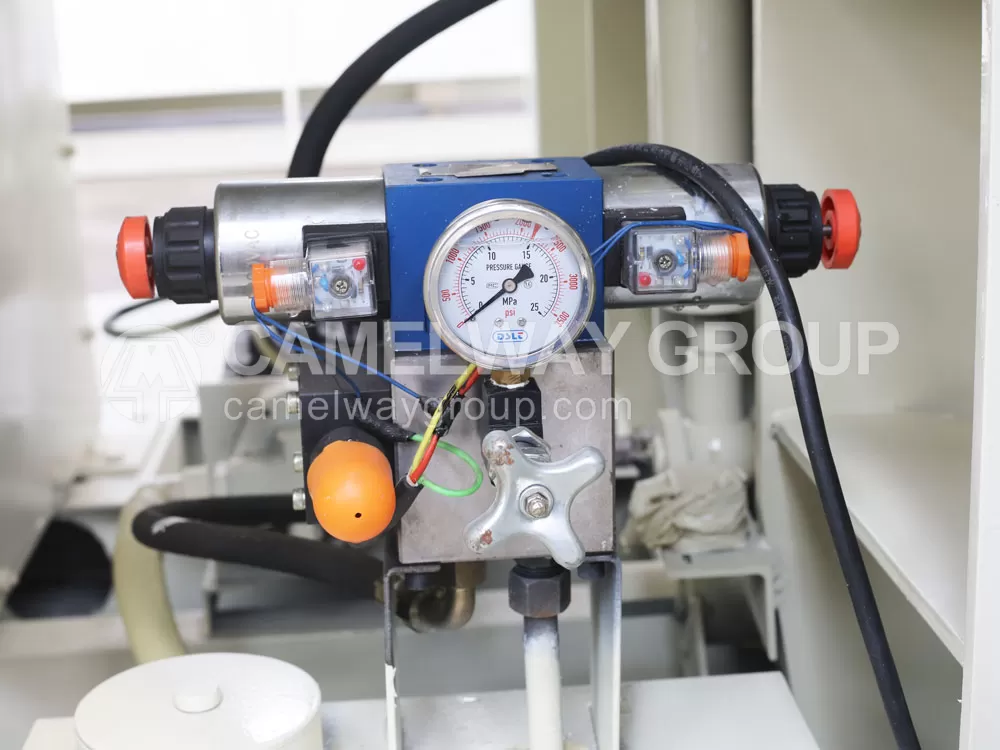

• Adjustable hydraulic discharge door’s angle for functional use
• High wear-resistant chromium-manganese alloys plates and blades
• Total weight of 11.2 tons with high level of manganese steel material
• Discharge height is 4.2m
• The JS1500 concrete mixer is registered China Well-Know Trademark with ISO, SGS certificates
